16SEPF560M - Conductive Polymer Aluminum Solid Capacitors

This page provides the datasheet information for the 16SEPF560M, a member of the 16SEPF150M Conductive Polymer Aluminum Solid Capacitors family.

Datasheet Summary

Features

  • High voltage (35 V max. ).
  • Large capacitance (1000 μF max. ).
  • RoHS compliance, Halogen free Specifications Size code C55 C6 E7 E12 Category temp. range.
  • 55 ℃ to +105 ℃ Rated voltage range 16 V to 32 V 16 V to 35 V Nominal cap. range 22 μF to 150 μF 22 μF to 180 μF 39 μF to 270 μF 82 μF to 560 μF Capacitance tolerance ±20 % (120 Hz / +20 ℃) DC leakage current Please see the attached characteristics list Dissipation factor (tan δ) Please see the attached cha.

📥 Download Datasheet

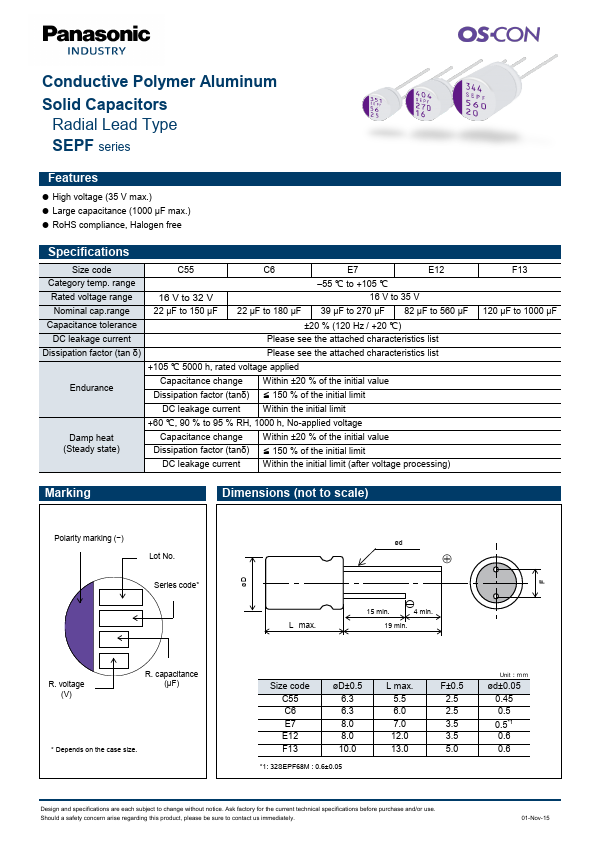

Datasheet preview – 16SEPF560M

Datasheet Details

Part number 16SEPF560M
Manufacturer Panasonic
File Size 650.57 KB
Description Conductive Polymer Aluminum Solid Capacitors
Datasheet download datasheet 16SEPF560M Datasheet

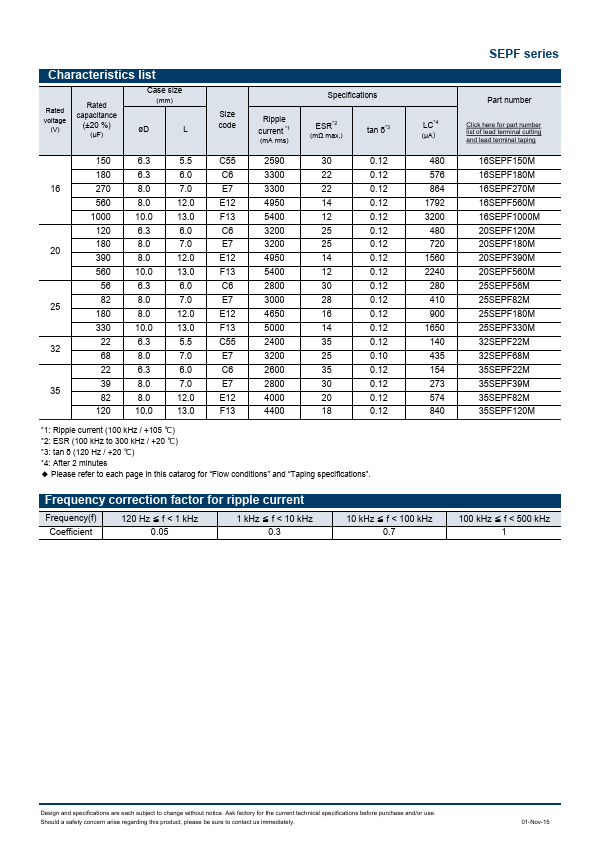

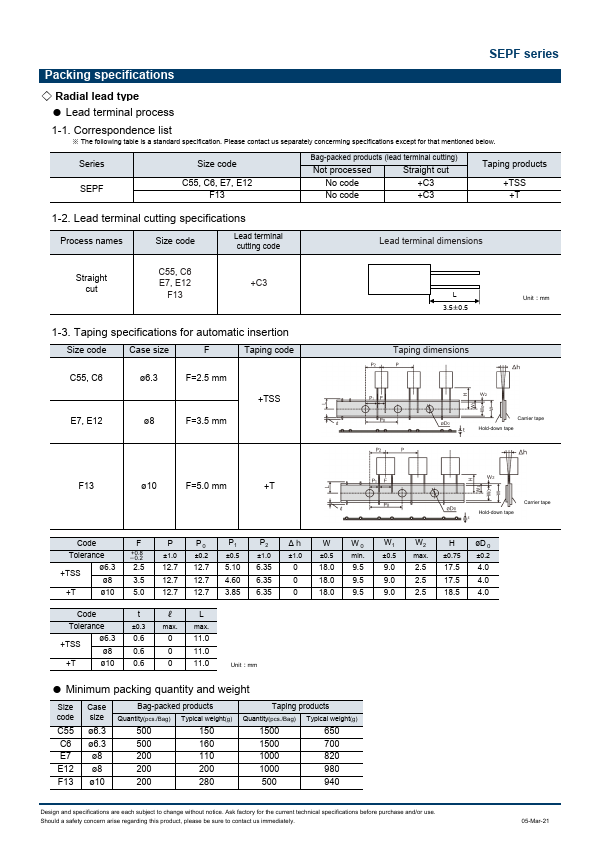

Additional preview pages of the 16SEPF560M datasheet.
