A1535 - 2SA1535

Name: A1535
SKU: A1535-1034149

Panasonic

The A1535 by Panasonic is a 2SA1535. Below is the official datasheet preview.

Datasheet Details

Part number	A1535
Manufacturer	Panasonic
File Size	45.63 KB
Description	2SA1535
Datasheet	A1535-Panasonic.pdf
Additional preview pages of the A1535 datasheet.

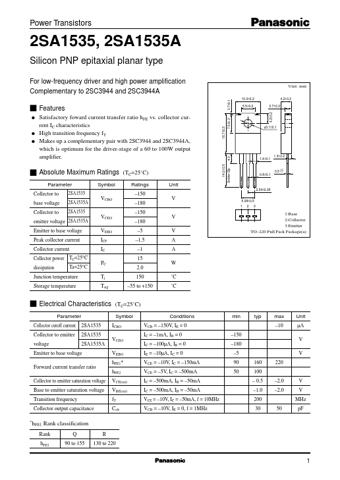

q Satisfactory foward current transfer ratio hFE vs. collector current IC characteristics q High transition frequency fT q Makes up a complementary pair with 2SC3944 and 2SC3944A, which is optimum for the driver-stage of a 60 to 100W output amplifier. s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to 2SA1535 base voltage 2SA1535A Collector to 2SA1535 emitter voltage 2SA1535A VCBO VCEO.
150.
180.
150.
180 Emitter to base voltage Pe.
