A1539 2SA1539

A1539 Description

Ordering number:EN2438A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1539/2SC3954 High-Definition CRT Display Video Output Applications Applicati.

A1539 Features

* High fT : fT=500MHz.
* High breakdown voltage : VCEO=120Vmin.
* Small reverse transfer capacitance and excellent HF response : Cre=2.7pF/NPN, 4.0pF/PNP.
* Complementary PNP and NPN types.
* Adoption of FBET process.
* Micaless type : TO-126 plastic package. ( ) : 2SA1539 S

A1539 Applications

* Applications

📥 Download Datasheet

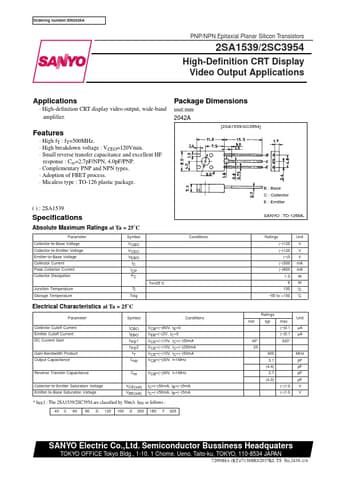

Preview of A1539 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1539
Manufacturer
Sanyo
File Size
120.09 KB
Datasheet
A1539-Sanyo.pdf
Description
2SA1539
