* 1. Compact 8-pin DIP size The device comes in a compact (W) 6.4 × (L) 9.78 ×(H) 3.9 mm (W) .252×(L) .385×(H) .154 inch, 8-pin DIP size (through hole terminal type). 2. Applicable for 2 Form A use as well as two independent 1 Form A use 3. Controls low-level analog signals PhotoMOS feature extremely
AQW214
Panasonic
159.76 KB
Photo mos relay.

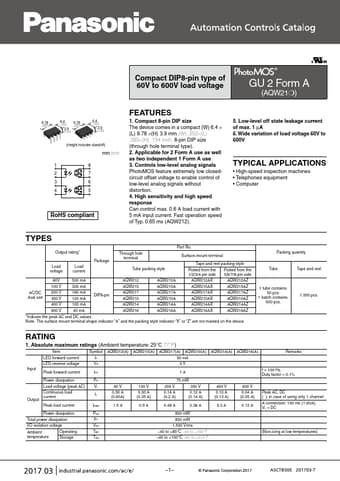

Compact DIP8-pin type of 60V to 600V load voltage GU 2 Form A (AQW21❍) 9.78 .385 6.4 .252 9.78 .385 3.9 .154 6.4 .252 3.6 .142 (Height include.
