ECEA1HKA100, ECEA0GKA470 - Aluminum Electrolytic Capacitors

Name: ECEA1HKA100
SKU: ECEA1HKA100-1263977

Panasonic

The ECEA1HKA100 by Panasonic is a Aluminum Electrolytic Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	ECEA1HKA100, ECEA0GKA470
Manufacturer	Panasonic
File Size	54.62 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	ECEA0GKA470-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: ECEA1HKA100, ECEA0GKA470. Please refer to the document for exact specifications by model.

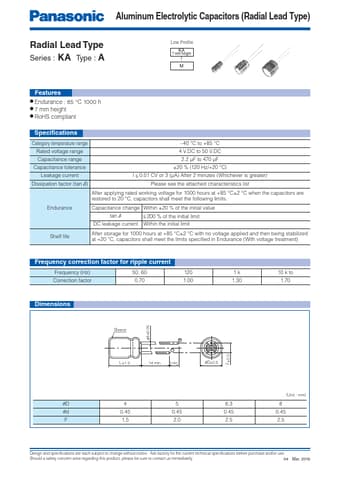

Additional preview pages of the ECEA1HKA100 datasheet.

Endurance : 85 °C 1000 h.
7 mm height.
RoHS compliant Specifications Category temperature range Rated voltage range Capacitance range Capacitance tolerance Leakage current Dissipation factor (tan d).
40 °C to +85 °C 4 V. DC to 50 V. DC 2.2 µF to 470 µF ±20 % (120 Hz/+20 °C) I < 0.01 CV or 3 (µA) After 2 minutes (Whichever is greater) Please see the attached characteristics list After applying rated working voltage for 1000 hours at +85 °C±2 °C when the capacitors are re.
