ECES1AG103Q, ECES1AG472D - Aluminum Electrolytic Capacitors

Name: ECES1AG103Q
SKU: ECES1AG103Q-1264189

Panasonic

The ECES1AG103Q by Panasonic is a Aluminum Electrolytic Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	ECES1AG103Q, ECES1AG472D
Manufacturer	Panasonic
File Size	77.89 KB
Description	Aluminum Electrolytic Capacitors
Datasheet	ECES1AG472D-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: ECES1AG103Q, ECES1AG472D. Please refer to the document for exact specifications by model.

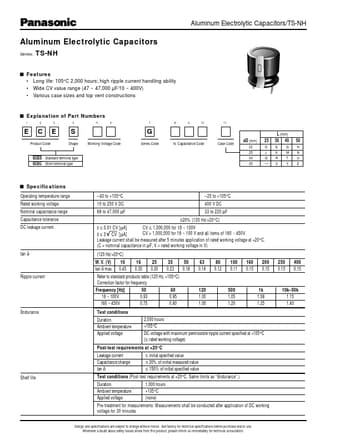

Additional preview pages of the ECES1AG103Q datasheet.

Long life: 105°C 2,000 hours; high ripple current handling ability.
Wide CV value range (47 ~ 47,000 µF/10 ~ 400V).
Various case sizes and top vent constructions s Explanation of Part Numbers 123 4 56 ECE S Product Code Shape Working Voltage Code ECES Standard terminal type ECEC Short terminal type 7 G Series Code 8 9 10 N. Capacitance Code 11 Case Code øD (mm) 22 25 30 35 L (mm) 25 30 40 DE G JKM QR T.
X Y 50 H N U Z s Specifications Operating.
