ECWU2182V16, ECWU2102V16, (ECWU Series) Film Chip Capacitor

Plastic Film Capacitors Film Chip Capacitor Type: ECWU (V16), (V17) Stacked Metallized PEN film as dielectric with simple mold-less construction n .

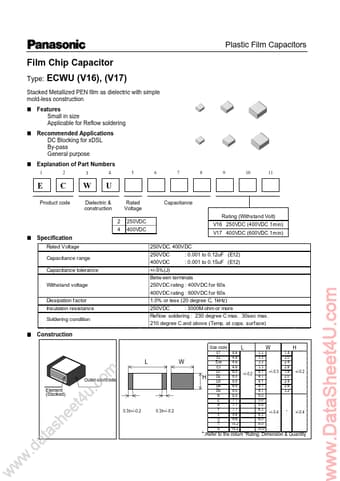

ECWU2102V16_Panasonic.pdf

ECWU2182V16 Datasheet Preview — This datasheet PDF includes multiple part numbers: ECWU2182V16, ECWU2102V16. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECWU2182V16, ECWU2102V16

Manufacturer:

Panasonic

File Size:

366.81 KB

Description:

(ECWU Series) Film Chip Capacitor

Note:

This datasheet PDF includes multiple part numbers: ECWU2182V16, ECWU2102V16.
Please refer to the document for exact specifications by model.

Applications

* DC Blocking for xDSL By-pass General purpose n Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E C W U Rated Voltage 2 4 250VDC 400VDC Product code Dielectric & construction Capacitance Rating (Withstand Volt) V16 250VDC (400VDC 1min) V17 400VDC (600VDC 1min) 250VDC, 400VDC 250VD
