ECWU2183C9, ECWU1C124JC9, Stacked Metallized PEN Film Chip Capacitor

Plastic Film Capacitors Stacked Metallized PEN Film Chip Capacitor Type: ECWU(C) Stacked metallized PEN film as dielectric with simple mold-less con.

ECWU1C124JC9_Panasonic.pdf

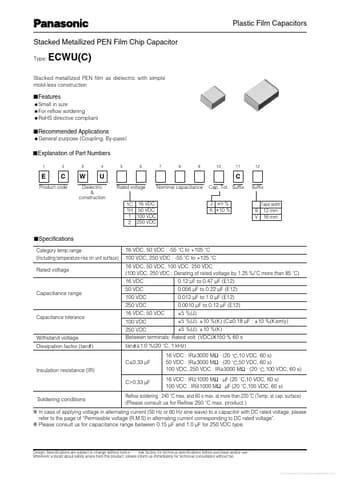

ECWU2183C9 Datasheet Preview — This datasheet PDF includes multiple part numbers: ECWU2183C9, ECWU1C124JC9. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ECWU2183C9, ECWU1C124JC9

Manufacturer:

Panasonic

File Size:

116.76 KB

Description:

Stacked Metallized PEN Film Chip Capacitor

Note:

This datasheet PDF includes multiple part numbers: ECWU2183C9, ECWU1C124JC9.
Please refer to the document for exact specifications by model.

Features

* Small in size
* For reflow soldering

Applications

* General purpose (Coupling, By-pass) I Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 12 E C W U Rated voltage Nominal capacitance C Cap. Tol. Suffix J ±5 % K ±10 % Suffix Product code Dielectric & construction 1C 16 VDC 1H 50 VDC 1 100 VDC 2 250 VDC 9 V Tape width 12 mm 16
