JQ1-18V-F, JQ1a-5V-F - 1a/1c 5A/10A small power relays

Panasonic

📥 Download Datasheet

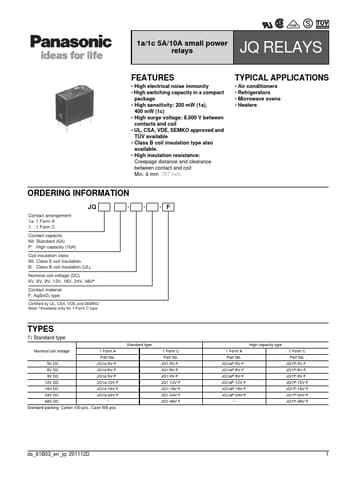

JQ1-18V-F Datasheet Preview — This datasheet PDF includes multiple part numbers: JQ1-18V-F, JQ1a-5V-F. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JQ1-18V-F, JQ1a-5V-F
Manufacturer	Panasonic ↗
File Size	520.38 KB
Description	1a/1c 5A/10A small power relays
Datasheet	JQ1a-5V-F-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: JQ1-18V-F, JQ1a-5V-F. Please refer to the document for exact specifications by model.

JQ1-18V-F Product details

Features

High electrical noise immunity.
High switching capacity in a compact package.
High sensitivity: 200 mW (1a), 400 mW (1c).
High surge voltage: 8,000 V between contacts and coil.
UL, CSA, VDE, SEMKO approved and TÜV available.
Class B coil insulation type also available.
High insulation resistance: Creepage distance and clearance between contact and coil: Min. 4 mm .157 inch.
