LNJ211R82RA Datasheet - Panasonic

LNJ211R82RA Hight Bright Surface Mounting Chip LED

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LNJ211R82RA Hight Bright Surface Mounting Chip LED 3216 Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation PD Forward current IF Pulse forward current IFP Reverse voltage VR Operating ambient temperature Topr Storage temperature Tstg Note) : The condition of IFP is duty 10%, Pulse width 1 msec. 55 20 60 4 30 to +85 40 to +100 .

LNJ211R82RA-Panasonic.pdf

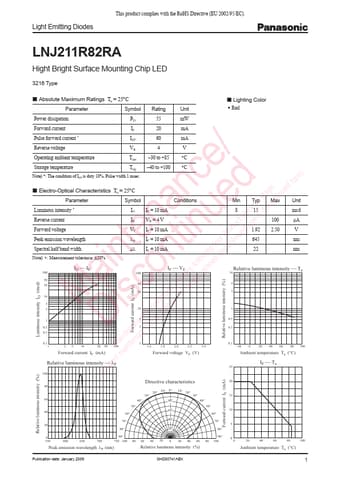

Preview of LNJ211R82RA PDF
LNJ211R82RA Datasheet Preview Page 2 LNJ211R82RA Datasheet Preview Page 3

Datasheet Details

Part number:

LNJ211R82RA

Manufacturer:

Panasonic

File Size:

336.35 KB

Description:

Hight bright surface mounting chip led.
