LNJ212W82RA1 Datasheet - Panasonic

LNJ212W82RA1 Hight Bright Surface Mounting Chip LED

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LNJ212W82RA1 Hight Bright Surface Mounting Chip LED TSS Type type)ce/ Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Power dissipation PD 55 Forward current IF 20 Pulse forward current IFP 60 Reverse voltage VR 4 Operating ambient temperature Topr 30 to +85 Storage temperature Tstg 40 to +100 Note) : The condition of IFP is duty 10%, Pulse width 1.

LNJ212W82RA1-Panasonic.pdf

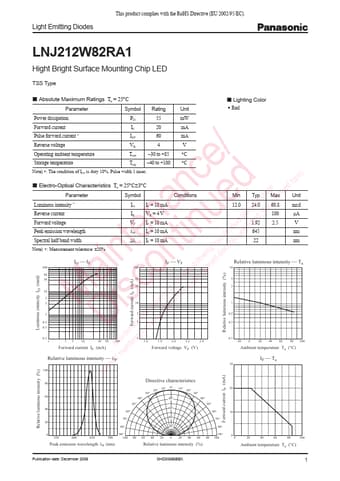

Preview of LNJ212W82RA1 PDF
LNJ212W82RA1 Datasheet Preview Page 2 LNJ212W82RA1 Datasheet Preview Page 3

Datasheet Details

Part number:

LNJ212W82RA1

Manufacturer:

Panasonic

File Size:

311.67 KB

Description:

Hight bright surface mounting chip led.
