MA152A - Silicon epitaxial planar type Switching Diodes

MA152A Description

Switching Diodes MA3X152A (MA152A), MA3X152K (MA152K) Silicon epitaxial planar type For high-speed switching circuits * .

MA152A Features

* Short reverse recovery time trr
* Small terminal capacitance Ct
* Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Reverse voltage Maximum peak reverse voltage Forward current Peak forward current Non-repetitive peak forward surge current
* VR VRM IF IFM IFSM

📥 Download Datasheet

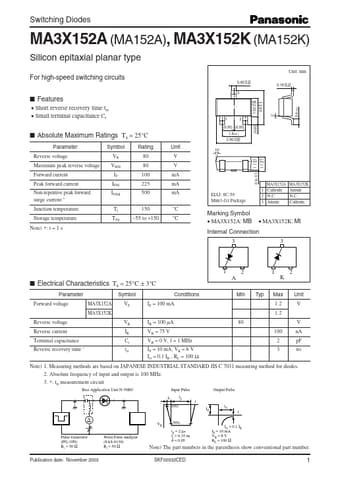

Preview of MA152A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA152A
Manufacturer
Panasonic
File Size
90.57 KB
Datasheet
MA152A_PanasonicSemiconductor.pdf
Description
Silicon epitaxial planar type Switching Diodes
