MA3Z793, Silicon epitaxial planar type

Schottky Barrier Diodes (SBD) MA3Z793 Silicon epitaxial planar type Unit : mm For super-high speed switching circuit For small current rectification.

MA3Z793_PanasonicSemiconductor.pdf

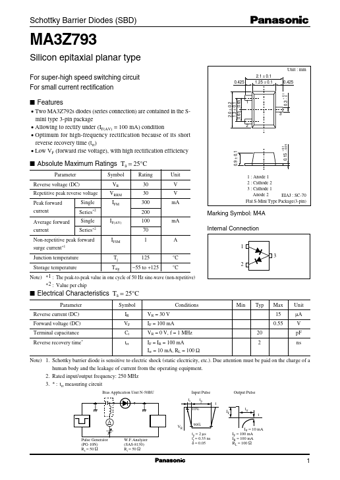

MA3Z793 Datasheet Preview — Preview of MA3Z793 PDF

Datasheet Details

Part number:

MA3Z793

Manufacturer:

Panasonic

File Size:

45.58 KB

Description:

Silicon epitaxial planar type

Features

* Two MA3Z792s diodes (series connection) are contained in the Smini type 3-pin package
* Allowing to rectify under (IF(AV) = 100 mA) condition
* Optimum for high-frequency rectification because of its short reverse recovery time (trr)
* Low VF (forward rise voltage),
