MAZ1270-L

Silicon planar type Zener Diodes

MAZ1270-L Features

* High reliability, achieved by the combination the planar type and the glass seal

* Large power dissipation: PD = 500 mW (With a printed-circuit board)

* Wide voltage range: VZ = 2.0 V to 39 V

* Easy-to-use because of the finely divided zener voltage ranks, such as L

MAZ1270-L Datasheet (77.69 KB)

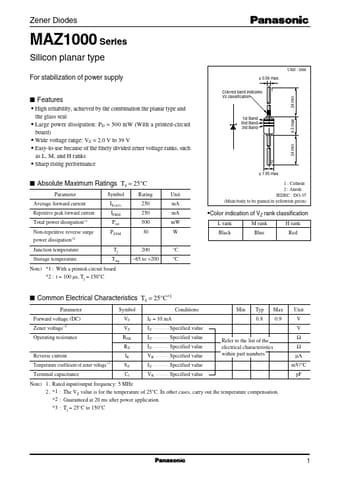

Preview of MAZ1270-L PDF

Datasheet Details

Part number:

MAZ1270-L

Manufacturer:

Panasonic

File Size:

77.69 KB

Description:

Silicon planar type zener diodes.
