MAZ2130, MAZ, Silicon planar type

Zener Diodes MAZ2000 Series (MA2000 Series) Silicon planar type Unit: mm For stabilization of power supply s .

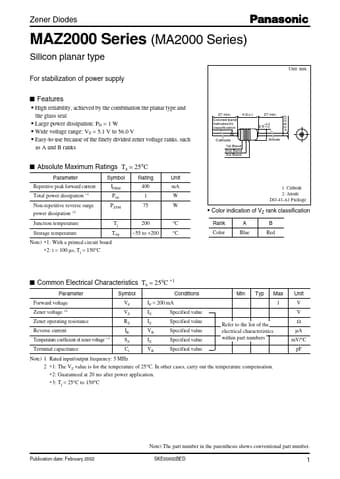

datasheet Preview Page 1 from Datasheet4u.com

MAZ-2000.pdf

MAZ2130 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAZ2130, MAZ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAZ2130, MAZ

Manufacturer:

Panasonic

File Size:

88.78 KB

Description:

Silicon planar type

Note:

This datasheet PDF includes multiple part numbers: MAZ2130, MAZ.
Please refer to the document for exact specifications by model.

Features

* High reliability, achieved by the combination the planar type and the glass seal
* Large power dissipation: PD = 1 W
* Wide voltage range: VZ = 5.1 V to 56.0 V
* Easy-to-use because of the finely divided zener voltage ranks, such as A and B ranks φ 0.8±00.5 27 min.

Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff
