TXS2Sx-4.5V TX-S RELAYS

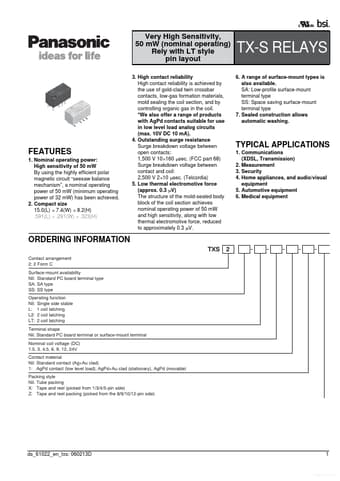

TX-S Very High Sensitivity, 50 mW (nominal operating) Rely with LT style pin layout 3. High contact reliability High contact reliability is achieved by the use of gold-clad twin crossbar contacts, low-gas formation materials, mold sealing the coil section, and by controlling organic gas in the coil. We also offer a range of products with AgPd contacts suitable for use in low level load analog circuits (max. 10V DC 10 mA). 4. Outstanding surge resistance Surge breakdown voltage between open .

TXS2Sx-4.5V Features

* 1. Nominal operating power: High sensitivity of 50 mW By using the highly efficient polar magnetic circuit “seesaw balance mechanism”, a nominal operating power of 50 mW (minimum operating power of 32 mW) has been achieved. 2. Compact size 15.0(L)  7.4(W)  8.2(H) .591(L)  .291(W)  .323(H) TYPIC
