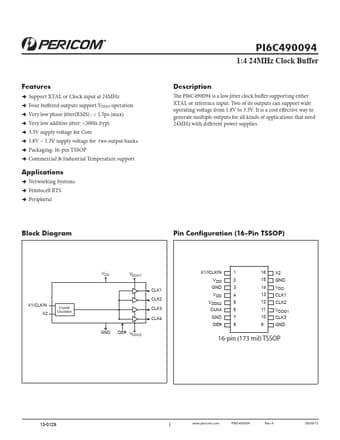

PI6C490094 Datasheet, Buffer, Pericom Semiconductor

PI6C490094 Features

• Buffer ÎÎSupport XTAL or Clock input at 24MHz ÎÎFour buffered outputs support VDDO operation ÎÎVery low phase jitter(RMS) : < 1.5ps (max) ÎÎVery low additive jitter: <300fs (typ) ÎÎ3.3V supply

PDF File Details

Part number:

PI6C490094

Manufacturer:

Pericom Semiconductor

File Size:

551.02kb

Download:

📄 Datasheet

Description:

1:4 24mhz clock buffer. The PI6C490094 is a low jitter clock buffer supporting either XTAL or reference input. Two of its outputs can support wide operating

PI6C490094 Application

• Applications ÎÎNetworking Systems ÎÎFemtocell BTS ÎÎPeripheral Block Diagram PI6C490094 1:4 24MHz Clock Buffer Description The PI6C490094 is a low
