PI6C49006 - Embedded Clock Generator

Product Overview

Pericom Semiconductor

Datasheet Details

Part number	PI6C49006
Manufacturer	Pericom Semiconductor
File Size	632.55 KB
Description	Embedded Clock Generator
Datasheet	PI6C49006 Datasheet

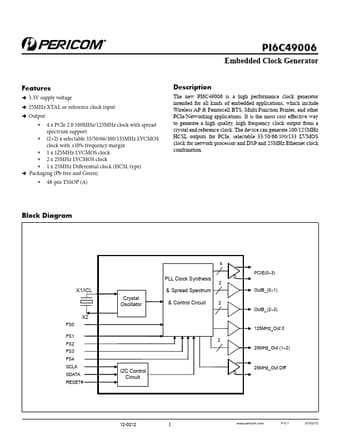

Additional preview pages of the PI6C49006 datasheet.

Product details

Description

The new PI6C49006 is a high performance clock generator intended for all kinds of embedded applications, which include Wireless AP & Femtocell BTS, Multi Function Printer, and other PCIe/Networking applications.

Features

ÎÎ3.3V supply voltage ÎÎ25MHz XTAL or reference clock input ÎÎOutput àà 4 x PCIe 2.0 100MHz/125MHz clock with spread spectrum support àà (2+2) x selectable 33/50/66/100/133MHz LVCMOS clock with ±10% frequency margin àà 1 x 125MHz LVCMOS clock àà 2 x 25MHz LVCMOS clock àà 1 x 25MHz Differential clock (HCSL type) ÎÎ Packaging (Pb free and Green) àà 48-pin TSSOP (A).
