PI6C490086 Datasheet - Pericom Semiconductor

PI6C490086 PLL Clock Multiplier

The PI6C490086 is a low jitter clock generator supporting either XTAL or reference input. Two of its buffered outputs can support wide operating voltage from 1.8V to 3.3V. It is a cost effective way to generate multiple outputs for all kinds of applications that need 25MHz with different power suppl.

PI6C490086 Features

* ÎÎSupport XTAL or Clock input at 25MHz ÎÎThree buffered outputs support VDD operation ÎÎOne 8.192 MHz output ÎÎVery low phase jitter(RMS), 25MHz : < 2ps ÎÎVery low additive jitter:

PI6C490086-PericomSemiconductor.pdf

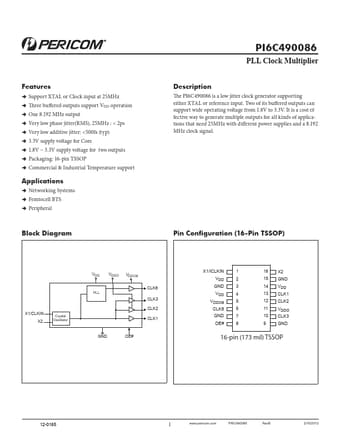

Preview of PI6C490086 PDF
PI6C490086 Datasheet Preview Page 2 PI6C490086 Datasheet Preview Page 3

Datasheet Details

Part number:

PI6C490086

Manufacturer:

Pericom Semiconductor

File Size:

540.49 KB

Description:

Pll clock multiplier.
