PI6C49004A Datasheet, Generator, Pericom Semiconductor

PI6C49004A Features

  • Generator
  • 3.3V +/-10% Supply Voltage
  • Uses 25MHz xtal such as Saronix-eCera™ SRX7278
  • Twelve PCIe® Gen. 2 100MHz HCSL outputs with optional -0.5% spread spectrum su

PDF File Details

Part number:

PI6C49004A

Manufacturer:

Pericom Semiconductor

File Size:

523.63kb

Download:

📄 Datasheet

Description:

Gen 2 networking clock generator. The PI6C49004A is a clock generator device intended for PCIe® Gen2 networking applications. The device includes twelve 100MHz differe

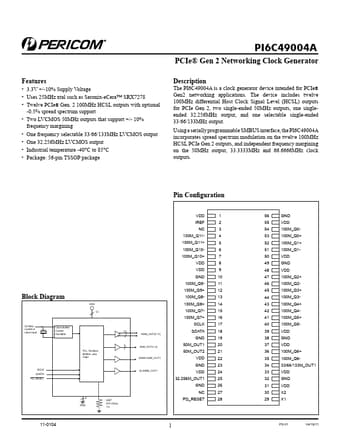

Datasheet Preview: PI6C49004A 📥 Download PDF (523.63kb)
Page 2 of PI6C49004A Page 3 of PI6C49004A

PI6C49004A Application

  • Applications The device includes twelve 100MHz differential Host Clock Signal Level (HCSL) outputs for PCIe Gen 2, two single-ended 50MHz outputs,
