S1612 - 1.8V CMOS Low Jitter Crystal Clock Oscillator

Datasheet Summary

Description

The S1612 Series is a 1.8V crystal clock oscillator using less than 20mW.

The output clock signal, generated internally with a non-PLL oscillator design, is compatible with JESD8-7 logic levels.

The device, available on tape and reel, is contained in a 5x7mm surface-mount ceramic package.

Features

1.8V CMOS compatible logic levels.
Pin-compatible with standard 5x7mm packages.
Designed for standard reflow and washing techniques.
Low power standby mode.
Pb-free and RoHS/Green compliant Product.

Pericom

📥 Download Datasheet

Datasheet Details

Part number	S1612
Manufacturer	Pericom
File Size	959.62 KB
Description	1.8V CMOS Low Jitter Crystal Clock Oscillator
Datasheet	S1612 Datasheet
Additional preview pages of the S1612 datasheet.

📁 Similar Datasheet

S16100NH - (S16xxNH) SCR (ST Microelectronics)
S1610NH - (S16xxNH) SCR (ST Microelectronics)
S1616NH - (S16xxNH) SCR (ST Microelectronics)
S161COG - LCD Module (Displaytech)
S16 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
S16-12S5 - DC/DC MODULES (Intronics Power)
S16-4148 - Switching Diode Array (Microsemi Corporation)
S16-4150 - Switching Diode Array (Microsemi Corporation)
S16008LK9 - 128Mb :x4 x8 x16 SDRAM (SPECtek)
S1602E - LCD MODULE USER MANUAL (Sinco)

Other Datasheets by Pericom

Full PDF Text Transcription

Click to expand full text

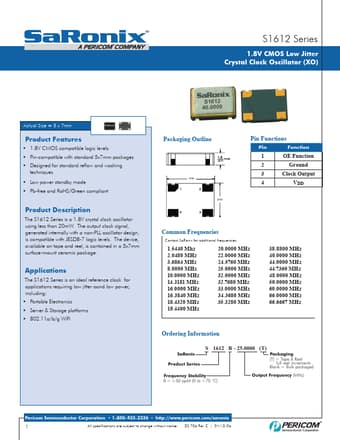

S1612 Series 1.8V CMOS Low Jitter Crystal Clock Oscillator (XO) Actual Size = 5 x 7mm Product Features • 1.8V CMOS compatible logic levels • Pin-compatible with standard 5x7mm packages • Designed for standard reflow and washing techniques • Low power standby mode • Pb-free and RoHS/Green compliant Product Description The S1612 Series is a 1.8V crystal clock oscillator using less than 20mW. The output clock signal, generated internally with a non-PLL oscillator design, is compatible with JESD8-7 logic levels. The device, available on tape and reel, is contained in a 5x7mm surface-mount ceramic package. Applications The S1612 Series is an ideal reference clock for applications requiring low jitter oand low power, including: • Portable Electronics • Server & Storage platforms • 802.
