Part number: 11N50E
Manufacturer: Philips
File Size: 118.03KB
Download: 📄 Datasheet
Description: PowerMOS transistors
Part number: 11N50E
Manufacturer: Philips
File Size: 118.03KB
Download: 📄 Datasheet
Description: PowerMOS transistors
* Repetitive Avalanche Rated
* Fast switching
* Stable off-state characteristics
* High thermal cycling performance
* Low thermal resistance
PHB11N50.
The PHW11N50E is supplied in the SOT429 (TO247) conventional leaded package. The PHB11N50E is supplied in the SOT404 su.
N-channel, enhancement mode field-effect power transistor, intended for use in off-line switched mode power supplies, T.V. and computer monitor power supplies, d.c. to d.c. converters, motor control circuits and general purpose switching applications.

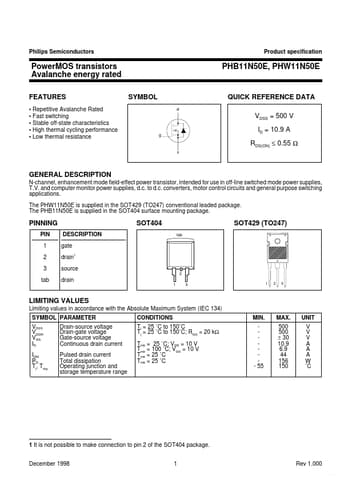

Image gallery
