11N50-CB Datasheet - UTC

N-CHANNEL MOSFET

11N50-CB Features

* RDS(ON) < 0.55Ω @ VGS = 10 V, ID = 5.5 A

* Fast Switching

* With 100% Avalanche Tested

* SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 11N50L-TF1-T 11N50G-TF1-T TO-220F1 11N50L-TF2-T 11N50G-TF2-T

11N50-CB General Description

The UTC 11N50-CB is an N-channel enhancement mode power MOSFET. It uses UTC advanced planar stripe, DMOS technology to provide customers perfect switching performance, minimal on-state resistance. It also can withstand high energy pulse in the avalanche and commutation mode. The UTC 11N50-CB is univ.

11N50-CB Datasheet (213.55 KB)

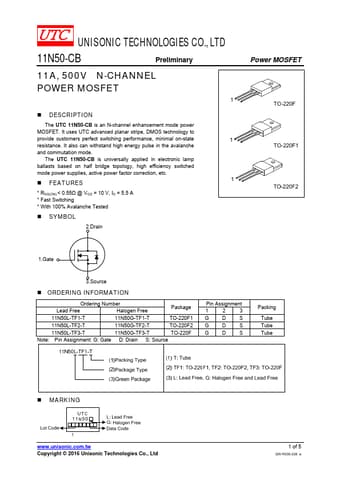

Preview of 11N50-CB PDF

Datasheet Details

Part number:

11N50-CB

Manufacturer:

UTC

File Size:

213.55 KB

Description:

N-channel mosfet.
