11N80-C - N-CHANNEL MOSFET

11N80-C Description

UNISONIC TECHNOLOGIES CO., LTD 11N80-C 11A, 800V NHANNEL POWER MOSFET * .
The UTC 11N80-C provide excellent RDS(ON), low gate charge and operation with low gate voltages.

11N80-C Features

* RDS(ON) ≤ 0.9 Ω @ VGS=10V, ID=5.5A
* Low Reverse Transfer Capacitance
* Fast Switching Capability
* Avalanche Energy Specified
* Improved dv/dt Capability, High Ruggedness
* SYMBOL 2.Drain 1 1 1 Power MOSFET TO-3P TO-220F1 TO-220F2 1.Gate 3.Source
* ORDERING INFOR

📥 Download Datasheet

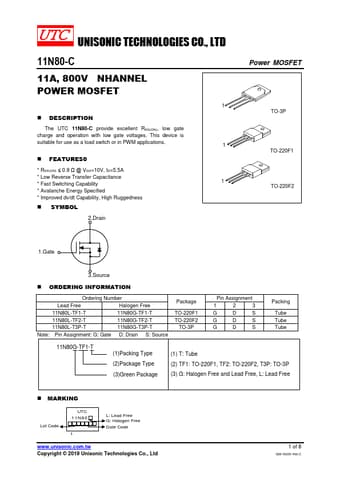

Preview of 11N80-C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
11N80-C
Manufacturer
UTC
File Size
468.58 KB
Datasheet
11N80-C-UTC.pdf
Description
N-CHANNEL MOSFET
