Part number: 11N4LLF5
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 1.13MB
Download: 📄 Datasheet
Description: N-channel Power MOSFET
Part number: 11N4LLF5
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 1.13MB
Download: 📄 Datasheet
Description: N-channel Power MOSFET

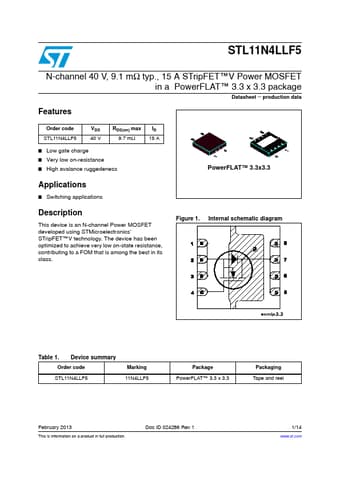

Order code STL11N4LLF5
VDS 40 V
RDS(on) max 9.7 mΩ
ID 15 A
* Low gate charge
* Very low on-resistance
* High avalance ruggedeness
Applications
* Swi.
* Switching applications
Description
This device is an N-channel Power MOSFET developed using STMicroelectronics’ .
This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V technology. The device has been optimized to achieve very low on-state resistance, contributing to a FOM that is among the best in its class.
PowerFLAT™ 3.3x3.3.
