11N65M2 - N-Channel MOSFET

11N65M2 Description

STD11N65M2, STP11N65M2, STU11N65M2 Datasheet N-channel 650 V, 0.60 Ω typ., 7 A MDmesh™ M2 Power MOSFET in DPAK, TO-220 and IPAK packages TAB 3 DPAK 1.
These devices are N-channel Power MOSFETs developed using the MDmesh M2 technology.

11N65M2 Features

* Order code VDS RDS(on) max. ID STD11N65M2 STP11N65M2 650 V 0.68 Ω 7A STU11N65M2
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* 100% avalanche tested

📥 Download Datasheet

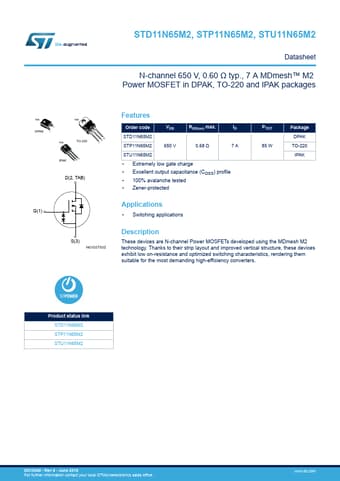

Preview of 11N65M2 PDF
datasheet Preview Page 2 datasheet Preview Page 3
