AHC1G14 - 74AHC1G14

Datasheet Summary

Description

The 74AHC1G/AHCT1G14 is a high-speed Si-gate CMOS device.

The 74AHC1G/AHCT1G14 provides the inverting buffer function with Schmitt-trigger action.

These devices are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Features

  • Symmetrical output impedance.
  • High noise immunity.
  • ESD protection:.
  • HBM EIA/JESD22-A114-A exceeds 2000 V.
  • MM EIA/JESD22-A115-A exceeds 200 V.
  • CDM EIA/JESD22-C101 exceeds 1000 V.
  • Low power dissipation.
  • Balanced propagation delays.
  • Very small 5 pin package.
  • Output capability: standard.
  • Specified from.
  • 40 to +125 °C.

📥 Download Datasheet

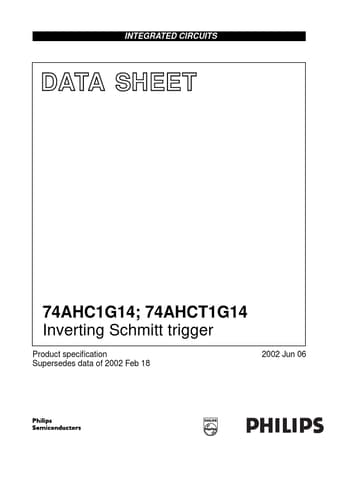

Datasheet preview – AHC1G14

Datasheet Details

Part number AHC1G14
Manufacturer Philips
File Size 98.00 KB
Description 74AHC1G14
Datasheet download datasheet AHC1G14 Datasheet
Additional preview pages of the AHC1G14 datasheet.

📁 Similar Datasheet

  • AHC125 - Quadruple Bus Buffer Gates (Texas Instruments)
  • AHC157 - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS/MULTIPLEXERS (Texas Instruments)
  • AHC00 - QUADRUPLE 2-INPUT POSITIVE-NAND GATE (Texas Instruments)
  • AHC02 - QUADRUPLE 2-INPUT POSITIVE-NOR GATE (Texas Instruments)
  • AHC04 - HEX INVERTER (Texas Instruments)
  • AHC05 - HEX INVERTER (Texas Instruments)
  • AHC08 - Quadruple 2-Input Positive-AND Gate (Texas Instruments)
  • AHC32 - QUADRUPLE 2-INPUT POSITIVE-OR GATES (Texas Instruments)
  • AHC367 - HEX BUFFERS AND LINE DRIVER (Texas Instruments)
  • AHC373 - OCTAL TRANSPARENT D-TYPE LATCHE (Texas Instruments)
Other Datasheets by Philips

    Full PDF Text Transcription

    Click to expand full text
    INTEGRATED CIRCUITS DATA SHEET 74AHC1G14; 74AHCT1G14 Inverting Schmitt trigger Product specification Supersedes data of 2002 Feb 18 2002 Jun 06 Philips Semiconductors Inverting Schmitt trigger Product specification 74AHC1G14; 74AHCT1G14 FEATURES • Symmetrical output impedance • High noise immunity • ESD protection: – HBM EIA/JESD22-A114-A exceeds 2000 V – MM EIA/JESD22-A115-A exceeds 200 V – CDM EIA/JESD22-C101 exceeds 1000 V. • Low power dissipation • Balanced propagation delays • Very small 5 pin package • Output capability: standard • Specified from −40 to +125 °C. APPLICATIONS • Wave and pulse shapers • Astable multivibrators • Monostable multivibrators. DESCRIPTION The 74AHC1G/AHCT1G14 is a high-speed Si-gate CMOS device.
