AHC125 Datasheet - Texas Instruments

AHC125 - Quadruple Bus Buffer Gates

The SNx4AHC125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs.

Each output is disabled when the associated output-enable (OE) input is high.

When OE is low, the respective gate passes the data from the A input to its Y output.

To ensure the high-impeda

AHC125 Features

* 1 Operating Range: 2 V to 5.5 V

* Latch-Up Performance Exceeds 250 mA Per JESD 17

* Four Individual Output Enable Pins

* All Inputs Have Schmitt-Trigger Action 2 Applications

* Flow Meters

* Programmable Logic Controllers

* Power Over Ethernet

AHC125-etcTI.pdf

Preview of AHC125 PDF

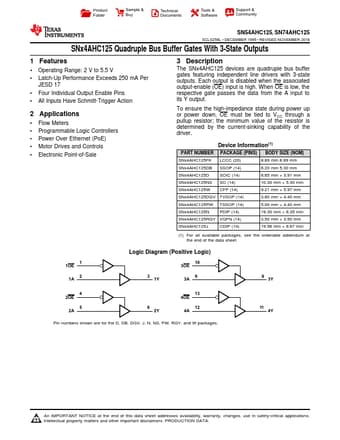

AHC125 Datasheet Preview Page 2 AHC125 Datasheet Preview Page 3

Datasheet Details

Part number:

AHC125

Manufacturer:

Texas Instruments ↗

File Size:

1.51 MB

Description:

Quadruple bus buffer gates.
