AHC05 Datasheet - Texas Instruments

AHC05 HEX INVERTER

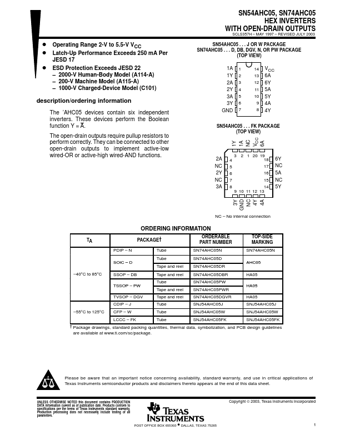

ordering information The ’AHC05 devices contain six independent inverters. These devices perform the Boolean function Y = A. The open-drain outputs require pullup resistors to perform correctly. They can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-A.
