AN95102

Low Power Single/Dual Ferquency Synthesizers

Philips

AN95102 Features

* Dual frequency synthesizers

* Operating voltage range 2.7 to 5.5 V for battery powered operation

* Low current consumption, 10 mA typically at 5.5 V (two PLLs 1. INTRODUCTION TO UMA1018M DUAL SYNTHESIZER 1.1 General description The UMA1018M [1] is a low power low voltage

AN95102 General Description

The UMA1018M [1] is a low power low voltage single chip solution to a dual frequency synthesizer used in radiocommunications. Designed in a BICMOS process, it operates from 2.7 (3 NiCd cells) to 5.5 V. The UMA1018M contains all the necessary elements with the exception of the VTCXO, VCO and loop fil.

AN95102 Datasheet (643.44 KB)

AN95102 Datasheet Preview — Preview of AN95102 PDF

Datasheet Details

Part number:

AN95102

Manufacturer:

Philips

File Size:

643.44 KB

Description:

Low power single/dual ferquency synthesizers.

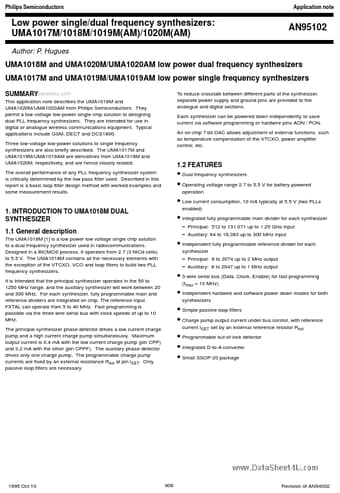

Philips Semiconductors Application note Low power single/dual frequency synthesizers: UMA1017M/1018M/1019M(AM)/1020M(AM) Author: P. Hugues AN95102 .
