PCA82C251 CAN transceiver

📥 Download Datasheet  Datasheet Preview Page 1

Description

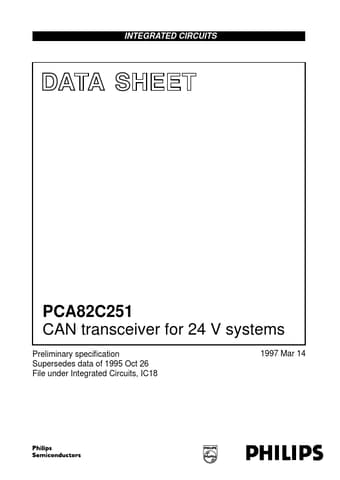

INTEGRATED CIRCUITS DATA SHEET PCA82C251 CAN transceiver for 24 V systems Preliminary specification Supersedes data of 1995 Oct 26 File under Integra.
The PCA82C251 is the interface between the CAN protocol controller and the physical bus.

📥 Download Datasheet

Preview of PCA82C251 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PCA82C251
Manufacturer
Philips
File Size
121.53 KB
Datasheet
PCA82C251-Philips.pdf
Description
CAN transceiver

Features

* Fully compatible with the “ISO 11898 - 24 V” standard
* Slope control to reduce RFI
* Thermally protected
* Short-circuit proof to battery and ground in 24 V powered systems
* Low current standby mode
* An unpowered node does not disturb the bus line

Applications

* (up to 1 MBaud) in trucks and buses. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. QUICK REFERENCE DATA SYMBOL VCC ICC 1/tbit VCAN Vdiff Tamb PARAMETER supply voltage supply current maximum transmission speed CANH, CANL
