PCA82C250T, PCA82C250 - CAN controller interface

PCA82C250T Description

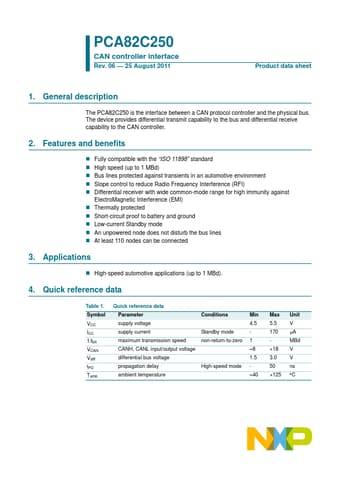

PCA82C250 CAN controller interface Rev.06 * 25 August 2011 Product data sheet 1.General .
The PCA82C250 is the interface between a CAN protocol controller and the physical bus.

PCA82C250T Features

* Fully compatible with the “ISO 11898” standard
* High speed (up to 1 MBd)
* Bus lines protected against transients in an automotive environment
* Slope control to reduce Radio Frequency Interference (RFI)
* Differential receiver with wide common-mode range for high immunity aga

PCA82C250T Applications

* High-speed automotive applications (up to 1 MBd). 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min VCC ICC 1/tbit VCAN Vdiff tPD Tamb supply voltage 4.5 supply current Standby mode - maximum transmission speed non-return-to-zero 1 CANH, CANL i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PCA82C250T, PCA82C250. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PCA82C250T, PCA82C250
Manufacturer
NXP ↗
File Size
144.09 KB
Datasheet
PCA82C250_PhilipsSemiconductors.pdf
Description
CAN controller interface
Note
This datasheet PDF includes multiple part numbers: PCA82C250T, PCA82C250.
Please refer to the document for exact specifications by model.
