PCA0495A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

This page provides the datasheet information for the PCA0495A, a member of the PCA0495A_Z LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP family.

Datasheet Summary

Description

NOTES: Reference Oscillator Signal: 5 MHz

Features

  • Frequency Range: 470 - 520 MHz.
  • Step Size: 100 KHz.
  • cPLL - Style Package.

📥 Download Datasheet

Datasheet preview – PCA0495A

Datasheet Details

Part number PCA0495A
Manufacturer Z-Communications
File Size 88.23 KB
Description LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
Datasheet download datasheet PCA0495A Datasheet
Additional preview pages of the PCA0495A datasheet.

📁 Similar Datasheet

Other Datasheets by Z-Communications
  • PCA0445A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0174A-LF - Telecommunications - Satellite
  • PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0300A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA1127A - PHASE LOCKED LOOP
  • PCA1292A - PHASE LOCKED LOOP

Full PDF Text Transcription

Click to expand full text

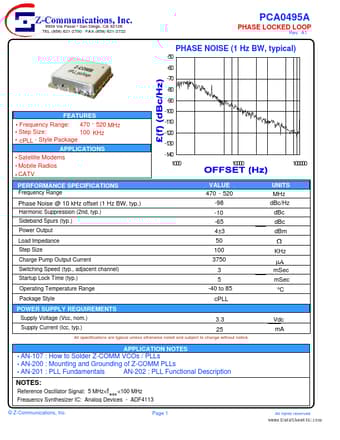

www.DataSheet4U.com 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PCA0495A PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -50 -60 -70 -80 -90 FEATURES • Frequency Range: 470 - 520 MHz • Step Size: 100 KHz • cPLL - Style Package APPLICATIONS • Satellite Modems • Mobile Radios • CATV PERFORMANCE SPECIFICATIONS Frequency Range -100 -110 -120 -130 -140 1000 10000 100000 VALUE 470 - 520 -98 -10 -65 4±3 50 100 3750 3 5 -40 to 85 cPLL 3.3 25 APPLICATION NOTES Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Sideband Spurs (typ.) Power Output Load Impedance Step Size Charge Pump Output Current Switching Speed (typ., adjacent channel) Startup Lock Time (typ.
