PCA1070

Multistandard programmable analog CMOS transmission

PCA1070 Features

* Line interface with:

* Voltage regulator with programmable DC voltage drop

* Programmable set impedance

* Output to control an external switching MOS transistor for pulse dialling

* Programmable DC voltage during pulse dialling

* Circuitry for short

PCA1070 General Description

The PCA1070 is a CMOS integrated circuit performing all speech and line interface functions in fully electronic telephone sets. The device requires a minimum of external components. The transmission parameters are programmable via the I2C-bus. This makes the IC adaptable to nearly all worldwide coun.

PCA1070 Datasheet (180.74 KB)

Preview of PCA1070 PDF

Datasheet Details

Part number:

PCA1070

Manufacturer:

NXP ↗

File Size:

180.74 KB

Description:

Multistandard programmable analog cmos transmission.

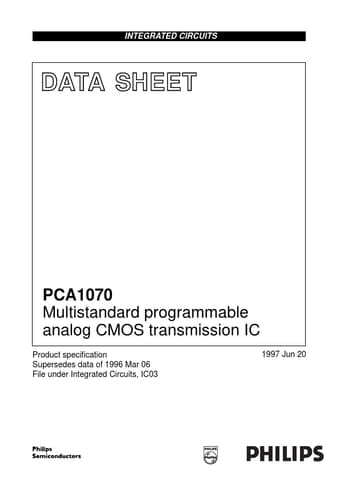

INTEGRATED CIRCUITS DATA SHEET PCA1070 Multistandard programmable analog CMOS transmission IC Product specification Supersedes data of 1996 Mar 06 Fi.
