PCA1550B-LF, PCA1550B-LF_Z Datasheet - Z-Communications

PCA1550B-LF Satellite Communication Systems

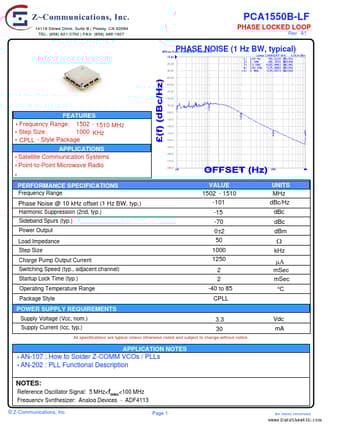

NOTES: Reference Oscillator Signal: 5 MHz< <100 MHz Frequency Synthesizer: Analog Devices - ADF4113 © Z-Communications, Inc. Page 1 All rights reserved PHASE LOCKED LOOP VCO TUNING CURVE, typ. 1580 1560 PCA1550B-LF PAGE 2 FREQUENCY (MHz) 1540 1520 1500 1480 1460 1440 1420 0 0.5 1 1.5 2 2.5 3 8.

PCA1550B-LF Features

* Frequency Range: 1502 - 1510 MHz

* Step Size: 1000 KHz

* CPLL - Style Package APPLICATIONS

* Satellite Communication Systems

* Point-to-Point Microwave Radio

* PERFORMANCE SPECIFICATIONS Frequency Range VALUE 1502 - 1510 -101 -15 -70 0±2 50 1000 125

PCA1550B-LF_Z-Communications.pdf

PCA1550B-LF Datasheet Preview — This datasheet PDF includes multiple part numbers: PCA1550B-LF, PCA1550B-LF_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCA1550B-LF, PCA1550B-LF_Z

Manufacturer:

Z-Communications

File Size:

93.45 KB

Description:

Satellite communication systems.

Note:

This datasheet PDF includes multiple part numbers: PCA1550B-LF, PCA1550B-LF_Z.
Please refer to the document for exact specifications by model.
