PCA1292B-LF

Satellite Communication Systems

PCA1292B-LF Features

* Frequency Range: 1292 - 1298 MHz

* Step Size: 1000 KHz

* CPLL - Style Package APPLICATIONS

* Fixed Wireless Broadband Equipment

* Point-to-Point Microwave Radio

* Satellite Communication Systems PERFORMANCE SPECIFICATIONS Frequency Range VALUE 1292

PCA1292B-LF General Description

NOTES: Reference Oscillator Signal: 5 MHz< <100 MHz Frequency Synthesizer: Analog Devices - ADF4113 © Z-Communications, Inc. Page 1 All rights reserved PHASE LOCKED LOOP VCO TUNING CURVE, typ. 1380 1360 1340 PCA1292B-LF PAGE 2 FREQUENCY (MHz) 1320 1300 1280 1260 1240 1220 1200 0 0.5 1 1.5 2 2.5.

PCA1292B-LF Datasheet (93.51 KB)

Preview of PCA1292B-LF PDF

Datasheet Details

Part number:

PCA1292B-LF

Manufacturer:

Z-Communications

File Size:

93.51 KB

Description:

Satellite communication systems.
PCA1292B-LF 14118 Stowe Drive, Suite B | Poway, CA 92064 TEL: (858) 621-2700 | FAX: (858) 486-1927 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, ty.

📁 Related Datasheet

PCA1292A - PHASE LOCKED LOOP (Z-Communications)
PCA1292A 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -50 -60 .

PCA1070 - Multistandard programmable analog CMOS transmission (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA1070 Multistandard programmable analog CMOS transmission IC Product specification Supersedes data of 1996 Mar 06 Fi.

PCA1127A - PHASE LOCKED LOOP (Z-Communications)
PCA1127A 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -50 -60 .

PCA1461 - CMOS (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA146x series 32 kHz watch circuits with adaptive motor pulse Product specification Supersedes data of 1998 Mar 18 Fi.

PCA1462 - CMOS (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA146x series 32 kHz watch circuits with adaptive motor pulse Product specification Supersedes data of 1998 Mar 18 Fi.

PCA1463 - CMOS (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA146x series 32 kHz watch circuits with adaptive motor pulse Product specification Supersedes data of 1998 Mar 18 Fi.

PCA1465 - CMOS (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA146x series 32 kHz watch circuits with adaptive motor pulse Product specification Supersedes data of 1998 Mar 18 Fi.

PCA1467 - CMOS (NXP)
INTEGRATED CIRCUITS DATA SHEET PCA146x series 32 kHz watch circuits with adaptive motor pulse Product specification Supersedes data of 1998 Mar 18 Fi.

TAGS

PCA1292B-LF Satellite Communication Systems Z-Communications

Image Gallery

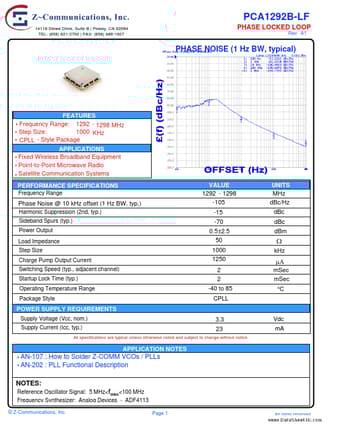

PCA1292B-LF Datasheet Preview Page 2
