PCA1550A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

This page provides the datasheet information for the PCA1550A, a member of the PCA1550A_Z LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP family.

Datasheet Summary

Description

NOTES: Reference Oscillator Signal: 5 MHz

Features

  • Frequency Range: 1500 - 1600 MHz.
  • Step Size: 1000 KHz.
  • cPLL - Style Package.

📥 Download Datasheet

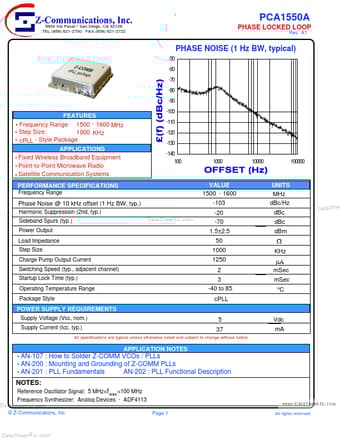

Datasheet preview – PCA1550A

Datasheet Details

Part number PCA1550A
Manufacturer Z-Communications
File Size 219.23 KB
Description LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
Datasheet download datasheet PCA1550A Datasheet
Additional preview pages of the PCA1550A datasheet.

📁 Similar Datasheet

Other Datasheets by Z-Communications
  • PCA1550B-LF - Satellite Communication Systems
  • PCA1127A - PHASE LOCKED LOOP
  • PCA1292A - PHASE LOCKED LOOP
  • PCA1292B-LF - Satellite Communication Systems
  • PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0174A-LF - Telecommunications - Satellite
  • PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com PCA1550A 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -50 -60 -70 -80 -90 FEATURES • Frequency Range: 1500 - 1600 MHz • Step Size: 1000 KHz • cPLL - Style Package APPLICATIONS • Fixed Wireless Broadband Equipment • Point-to-Point Microwave Radio • Satellite Communication Systems PERFORMANCE SPECIFICATIONS Frequency Range -100 -110 -120 -130 -140 100 1000 10000 100000 VALUE 1500 - 1600 -103 DataSheet4U.com Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Sideband Spurs (typ.) Power Output Load Impedance Step Size Charge Pump Output Current Switching Speed (typ., adjacent channel) Startup Lock Time (typ.
