PCA0300A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

This page provides the datasheet information for the PCA0300A, a member of the PCA0300A_Z LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP family.

Datasheet Summary

Description

NOTES: Reference Oscillator Signal: 5 MHz< f osc

Features

  • Frequency Range: 275 - 325 MHz.
  • Step Size: 100 KHz.
  • cPLL - Style Package.

📥 Download Datasheet

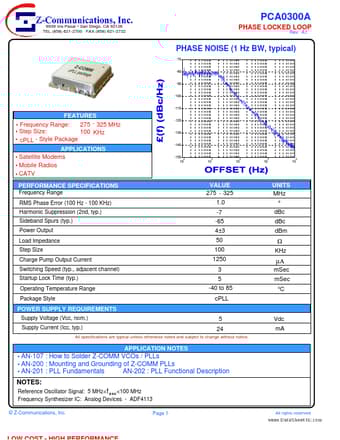

Datasheet preview – PCA0300A

Datasheet Details

Part number PCA0300A
Manufacturer Z-Communications
File Size 83.00 KB
Description LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
Datasheet download datasheet PCA0300A Datasheet
Additional preview pages of the PCA0300A datasheet.

📁 Similar Datasheet

Other Datasheets by Z-Communications
  • PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0174A-LF - Telecommunications - Satellite
  • PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0445A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA0495A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP
  • PCA1127A - PHASE LOCKED LOOP
  • PCA1292A - PHASE LOCKED LOOP

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 PCA0300A PHASE LOCKED LOOP Rev A1 PHASE NOISE (1 Hz BW, typical) -70 -80 -90 -100 -110 FEATURES • Frequency Range: 275 - 325 MHz • Step Size: 100 KHz • cPLL - Style Package APPLICATIONS • Satellite Modems • Mobile Radios • CATV PERFORMANCE SPECIFICATIONS Frequency Range RMS Phase Error (100 Hz - 100 KHz) Harmonic Suppression (2nd, typ.) Sideband Spurs (typ.) Power Output Load Impedance Step Size Charge Pump Output Current Switching Speed (typ., adjacent channel) Startup Lock Time (typ.) Operating Temperature Range Package Style -120 -130 -140 -150 2 10 10 3 10 4 10 5 10 6 VALUE 275 - 325 1.
