PSMN004-25P

N-channel logic level TrenchMOS transistor

PSMN004-25P Features

* ’Trench’ technology

* Very low on-state resistance

* Fast switching

* Low thermal resistance g SYMBOL d QUICK REFERENCE DATA VDSS = 25 V ID = 75 A RDS(ON) ≤ 4.3 mΩ (VGS = 10 V) RDS(ON) ≤ 5 mΩ (VGS = 5 V) s GENERAL DESCRIPTION SiliconMAX products use the latest Ph

PSMN004-25P General Description

SiliconMAX products use the latest Philips Trench technology to achieve the lowest possible on-state resistance in each package at each voltage rating. Applications:

* d.c. to d.c. converters

* switched mode power supplies The PSMN004-25P is supplied in the SOT78 (TO220AB) conventiona.

PSMN004-25P Datasheet (101.95 KB)

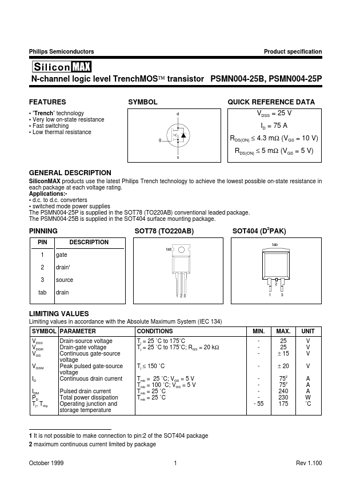

Preview of PSMN004-25P PDF

Datasheet Details

Part number:

PSMN004-25P

Manufacturer:

Philips

File Size:

101.95 KB

Description:

N-channel logic level trenchmos transistor.
