PSMN004-55W

N-channel logic level TrenchMOS transistor

PSMN004-55W Features

* ’Trench’ technology

* Very low on-state resistance

* Fast switching

* Low thermal resistance

* Logic level compatible PSMN004-55W QUICK REFERENCE DATA SYMBOL d VDSS = 55 V ID = 100 A RDS(ON) ≤ 4.2 mΩ (VGS = 10 V) RDS(ON) ≤ 4.5 mΩ (VGS = 5 V) g s RDS(ON

PSMN004-55W General Description

SiliconMAX products use the latest Philips Trench technology to achieve the lowest possible on-state resistance in each package at each voltage rating. Applications:

* d.c. to d.c. converters

* switched mode power supplies The PSMN004-55W is supplied in the SOT429 (TO247) conventional.

PSMN004-55W Datasheet (124.69 KB)

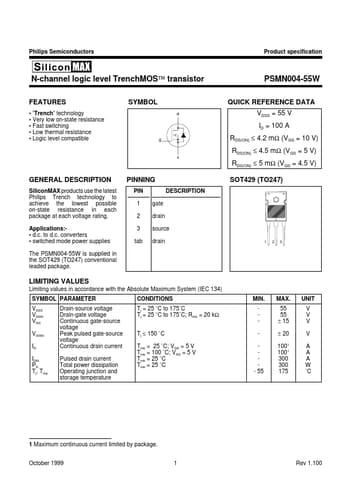

Preview of PSMN004-55W PDF

Datasheet Details

Part number:

PSMN004-55W

Manufacturer:

Philips

File Size:

124.69 KB

Description:

N-channel logic level trenchmos transistor.
