SAA5231

Teletext video processor

Philips

SAA5231 Features

* Adaptive data slicer

* Data clock regenerator

* Adaptive sync separator, horizontal phase detector and 6 MHz VCO forming display phase locked loop (PLL) QUICK REFERENCE DATA Supply voltage (pin 16) Supply current (pin 16) Video input amplitude (pin 27) (peak-to-peak value)

SAA5231 General Description

The SAA5231 is a bipolar integrated circuit intended as a successor to the SAA5030. It extracts Teletext Data from the video signal, regenerates Teletext Clock and synchronizes the text display to the television syncs. The integrated circuit is intended to work in conjunction with CCT (Computer Cont.

SAA5231 Datasheet (83.78 KB)

Rating: 1 ★ (1 votes)

SAA5231 Datasheet Preview — Preview of SAA5231 PDF

Datasheet Details

Part number:

SAA5231

Manufacturer:

Philips

File Size:

83.78 KB

Description:

Teletext video processor.

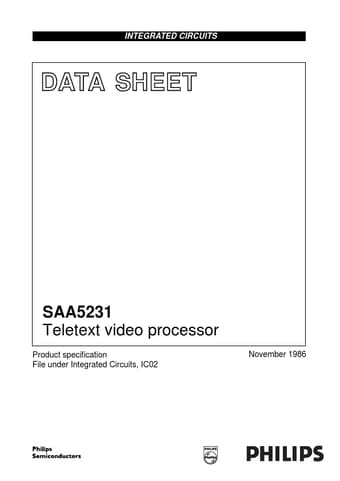

INTEGRATED CIRCUITS DATA SHEET SAA5231 Teletext video processor Product speciﬁcation File under Integrated Circuits, IC02 November 1986 Philips Sem.
