SE5019 8-Bit mp-compatible D/A converter

The NE/SE5018/19 is a complete 8-bit digital-to-analog converter subsystem on one monolithic chip. The data inputs have input latches which are controlled by a latch enable pin. The data and latch enable inputs are ultra-low loading for easy interfacing with all logic systems. The latches appear tra.

SE5019 Features

* 8-bit resolution

* Input latches

* Low-loading data inputs

* On-chip voltage reference

* Output buffer amplifier

* Accurate to ± LSB (0.19%)

* Monotonic to 8 bits

* Amplifier and reference both short-circuit protected

* Compa

SE5019_PhilipsSemiconductors.pdf

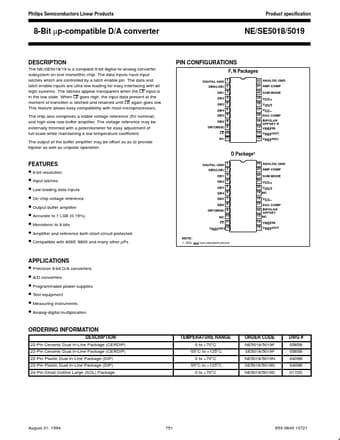

SE5019 Datasheet Preview — Preview of SE5019 PDF

Datasheet Details

Part number:

SE5019

Manufacturer:

Philips

File Size:

69.87 KB

Description:

8-bit mp-compatible d/a converter.
