SE5003L Datasheet, Amplifier, Skyworks Solutions

SE5003L Features

  • Amplifier
  • High output power amplifier - 23dBm at 5V
  • External Analog Reference Voltage (VREF) for maximum flexibility
  • Buffered, temperature compensated power detector

PDF File Details

Part number:

SE5003L

Manufacturer:

Skyworks Solutions

File Size:

270.67kb

Download:

📄 Datasheet

Description:

Power amplifier. The SE5003L is a 5GHz power amplifier offering high linear power for wireless LAN applications. The SE5003L incorporates a power dete

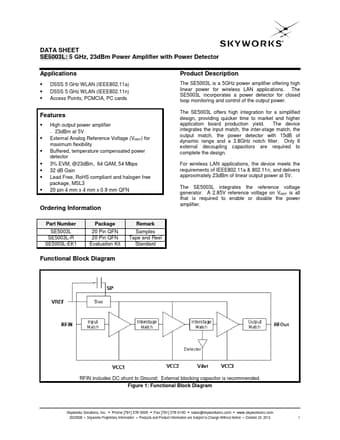

Datasheet Preview: SE5003L 📥 Download PDF (270.67kb)
Page 2 of SE5003L Page 3 of SE5003L

SE5003L Application

  • Applications
  • DSSS 5 GHz WLAN (IEEE802.11a)
  • DSSS 5 GHz WLAN (IEEE802.11n)
  • Access Points, PCMCIA, PC cards Features
