SE5004L - 26dBm Power Amplifier

Skyworks Solutions

SE5004L Description

DATA SHEET SE5004L: 5 GHz, 26dBm Power Amplifier with Power Detector Applications * DSSS 5 GHz WLAN (IEEE802.11a) * DSSS 5 GHz WLAN (IEEE802..
The SE5004L is a 5GHz power amplifier offering high linear power for wireless LAN applications.

SE5004L Features

* High output power amplifier - 26dBm at 5V
* External Analog Reference Voltage (VREF) for maximum flexibility
* Buffered, temperature compensated power detector
* 3% EVM, @26dBm, 64 QAM, 54 Mbps
* 32 dB Gain
* Lead Free, RoHS compliant, halogen free MSL3 package
* 20 pin

SE5004L Applications

* DSSS 5 GHz WLAN (IEEE802.11a)
* DSSS 5 GHz WLAN (IEEE802.11n)

📥 Download Datasheet

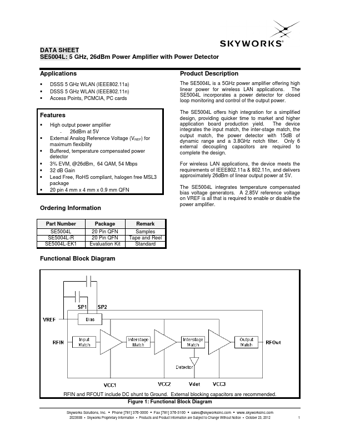

SE5004L Datasheet Preview — Preview of SE5004L PDF

Datasheet Details

Part number: SE5004L
Manufacturer: Skyworks Solutions
File Size: 263.06 KB
Datasheet: SE5004L-SkyworksSolutions.pdf
Description: 26dBm Power Amplifier
