UBA2013 - HB driver IC

Datasheet Summary

Description

The UBA2013/L3 is a high voltage IC intended to drive and control fluorescent lamps.

The IC can handle both cold and warm ignition of the lamp.

Features

  • 2.1 Half bridge.
  • Suitable for cold and warm ignition Adjustable preheat time Adjustable ignition voltage Integrated bootstrap function Protection for lamp failure and end-of-life.
  • Adjustable preheat current Single ignition attempt Automatic restart after relamping Protection for capacitive mode 2.2 PFC.
  • Three pin PFC controller using TON control.
  • Critical mode operation.
  • Overvoltag.

📥 Download Datasheet

Datasheet preview – UBA2013

Datasheet Details

Part number UBA2013
Manufacturer Philips
File Size 617.12 KB
Description HB driver IC
Datasheet download datasheet UBA2013 Datasheet
Additional preview pages of the UBA2013 datasheet.

📁 Similar Datasheet

  • UBA2014 - 600V driver IC (NXP)
  • UBA2015 - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver (NXP Semiconductors)
  • UBA2015A - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver (NXP Semiconductors)
  • UBA2016A - (UBA2015 / UBA2015A / UBA2016A) 600 V fluorescent lamp driver (NXP Semiconductors)
  • UBA2017 - 600V fluorescent lamp driver (NXP)
  • UBA2017A - 600V fluorescent lamp driver (NXP)
  • UBA2000T - Electronic TL-lamp starter (NXP)
  • UBA2021 - 630 V driver IC for CFL and TL lamps (NXP)
  • UBA2024 - Half-bridge power IC (NXP)
  • UBA2025 - CFL power IC (NXP Semiconductors)
Other Datasheets by Philips

Full PDF Text Transcription

Click to expand full text

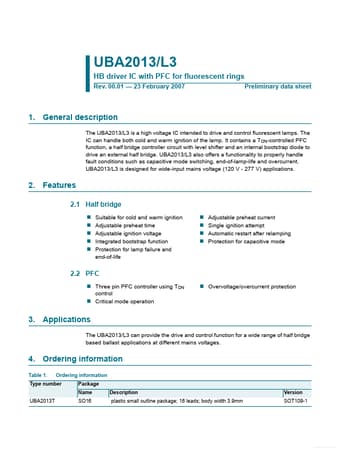

UBA2013/L3 HB driver IC with PFC for fluorescent rings Rev. 00.01 — 23 February 2007 Preliminary data sheet 1. General description The UBA2013/L3 is a high voltage IC intended to drive and control fluorescent lamps. The IC can handle both cold and warm ignition of the lamp. It contains a TON-controlled PFC function, a half bridge controller circuit with level shifter and an internal bootstrap diode to drive an external half bridge. UBA2013/L3 also offers a functionality to properly handle fault conditions such as capacitive mode switching, end-of-lamp-life and overcurrent. UBA2013/L3 is designed for wide-input mains voltage (120 V - 277 V) applications. 2. Features 2.
