BB909A

VHF variable capacitance diodes

BB909A Features

* Excellent linearity

* Matched to 2.5%

* Hermetically sealed leaded glass SOD68 (DO-34) package

* C28: 2.9 pF; ratio: 13.5

* Low series resistance. APPLICATIONS

* Electronic tuning in VHF television tuners, band B up to 460 MHz

* VCO. DESCRIPT

BB909A General Description

The BB909A, BB909B are variable capacitance diodes, fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD68 (DO-34) packages. ELECTRICAL CHARACTERISTICS Tj = 25 °C; unless otherwise specified. SYMBOL IR rs Cd PARAMETER reverse current diode series resistance diode .

BB909A Datasheet (30.30 KB)

Preview of BB909A PDF

Datasheet Details

Part number:

BB909A

Manufacturer:

Philipss

File Size:

30.30 KB

Description:

Vhf variable capacitance diodes.

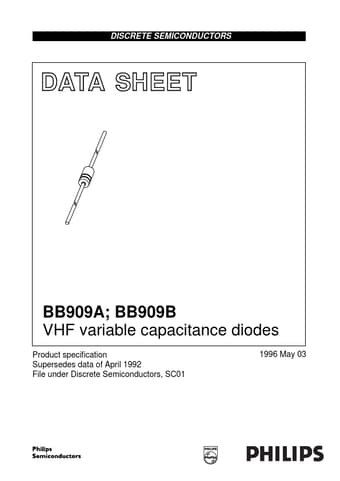

DISCRETE SEMICONDUCTORS DATA SHEET M3D051 BB909A; BB909B VHF variable capacitance diodes Product specification Supersedes data of April 1992 File un.
