BB910

VHF variable capacitance diode

BB910 Features

* Excellent linearity

* Matched to 2.5%

* Hermetically sealed leaded glass SOD68 (DO-34) package

* C28: 2.5; ratio: 16

* Low series resistance. APPLICATIONS

* Electronic tuning in VHF television tuners, band B up to 460 MHz

* VCO. DESCRIPTION T

BB910 General Description

The BB910 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the hermetically sealed leaded glass SOD68 (DO-34) package. ELECTRICAL CHARACTERISTICS Tj= 25 °C; unless otherwise specified. SYMBOL IR rs Cd PARAMETER reverse current diode series resistance diode capacit.

BB910 Datasheet (30.12 KB)

Preview of BB910 PDF

Datasheet Details

Part number:

BB910

Manufacturer:

Philipss

File Size:

30.12 KB

Description:

Vhf variable capacitance diode.

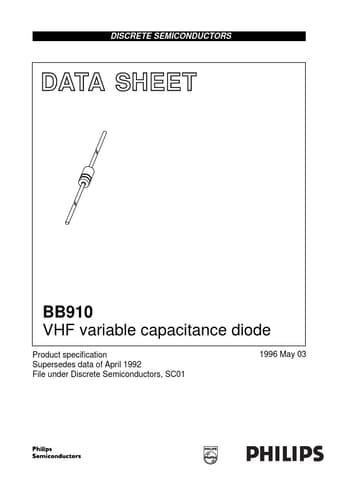

DISCRETE SEMICONDUCTORS DATA SHEET M3D051 BB910 VHF variable capacitance diode Product specification Supersedes data of April 1992 File under Discre.
