BB911

VHF variable capacitance diode

BB911 Features

* High linearity

* Matched to 2.5%

* Hermetically sealed leaded glass SOD68 (DO-34) package

* C28: 2.7 pF; ratio: 25. APPLICATIONS

* Electronic tuning in VHF television tuners, band A up to 160 MHz

* VCO. DESCRIPTION The BB911/A is a variable capacitan

BB911 General Description

The BB911/A is a variable capacitance diode, fabricated in planar technology, and encapsulated in the hermetically sealed leaded glass SOD68 (DO-34) package. ELECTRICAL CHARACTERISTICS Tj = 25 °C; unless otherwise specified. SYMBOL IR rs Cd PARAMETER reverse current diode series resistance diode capa.

BB911 Datasheet (30.21 KB)

Preview of BB911 PDF

Datasheet Details

Part number:

BB911

Manufacturer:

Philipss

File Size:

30.21 KB

Description:

Vhf variable capacitance diode.

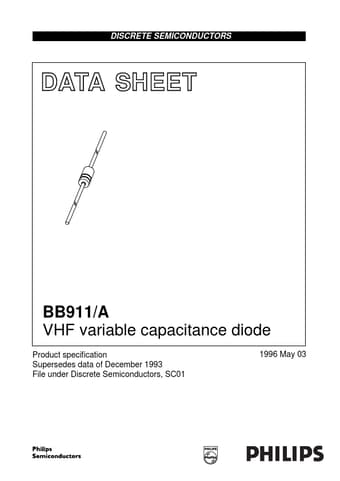

DISCRETE SEMICONDUCTORS DATA SHEET M3D051 BB911/A VHF variable capacitance diode Product specification Supersedes data of December 1993 File under D.
