PC302S - Microminiature Surface Mount Signal Relay

Datasheet Summary

Features

  • Microminiature design Surface mount with "L" shaped terminals Low 5mm profile Meets FCC part 68 voltage surge Bifurcated contacts for high sensitivity Single and dual coil latching available Sealed, immersion cleanable File # E86876 UL/CSA.

📥 Download Datasheet

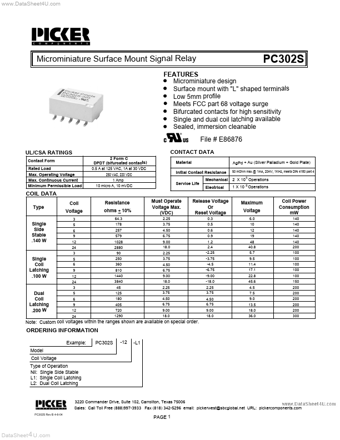

Datasheet preview – PC302S

Datasheet Details

Part number PC302S
Manufacturer Picker Components
File Size 293.65 KB
Description Microminiature Surface Mount Signal Relay
Datasheet download datasheet PC302S Datasheet
Additional preview pages of the PC302S datasheet.

📁 Similar Datasheet

  • PC302 - Microminiature 1 Amp Signal Relay (Picker)
  • PC3012 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC3016 - (PC3012 / PC3016) DIODE MODULE 30A/1200 to1600V (Nihon Inter Electronics)
  • PC3030K - 1/3.7 inch NTSC/PAL CMOS Image Sensor (Pixelplus)
  • PC308 - DIODE MODULE 30A/800V (Nihon Inter Electronics)
  • PC308 - Diode (Nihon Inter Electronics)
  • PC30F8 - FRD MODULE 30A/800V/trr:60nsec (Nihon Inter Electronics)
  • PC30H08V4 - White SMD LED (Lextar)
  • PC3-12-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC3-12-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
Other Datasheets by Picker Components
  • PC303 - Microminiature Signal Relay
  • PC303S - Microminiature Surface Mount Signal Relay
  • PC307 - Ultraminiature PCB Telecom Relay
  • PC312 - Subminiature PCB Telecom Relay
  • PC312B - Subminiature PCB Telecom Relay
  • PC333 - 12 Amp Subminature PCB Power Relay

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Microminiature Surface Mount Signal Relay PC302S FEATURES Microminiature design Surface mount with "L" shaped terminals Low 5mm profile Meets FCC part 68 voltage surge Bifurcated contacts for high sensitivity Single and dual coil latching available Sealed, immersion cleanable File # E86876 UL/CSA RATINGS Contact Form Rated Load Max. Operating Voltage Max. Continuous Current Minimum Permissible Load 2 Form C DPDT (bifurcated contacts) 0.5 A at 125 VAC, 1A at 30 VDC 250 VAC, 220 VDC 1 Amp 10 micro A, 10 mVDC CONTACT DATA Material Initial Contact Resistance Service Life Mechanical Electrical AgPd + Au (Silver Palladium + Gold Plate) 50 mOhm max @ 1mA, 20mV, 1KHz, meets DIN 4160 part 4 2 X 10 Operations 1 X 10 8 Operations 5 COIL DATA Type Single Side Stable .
