PC775 - 75 Amp Screw Terminal Automotive Relay

PC775 Description

75 Amp Screw Terminal Automotive Relay PC775 .

PC775 Features

*  75 Amp at 14 VDC Continuous Carry Current at 25°C
*  Max Switching Current of 150 Amps
*  Bifurcated Contacts Standard
*  Tungsten Contacts Connect First Switching the Load
*  Oversized Silver Tin Contacts Carry the Load
*  12 and 24 VDC Versions
*  -40°C to 125°C Oper

📥 Download Datasheet

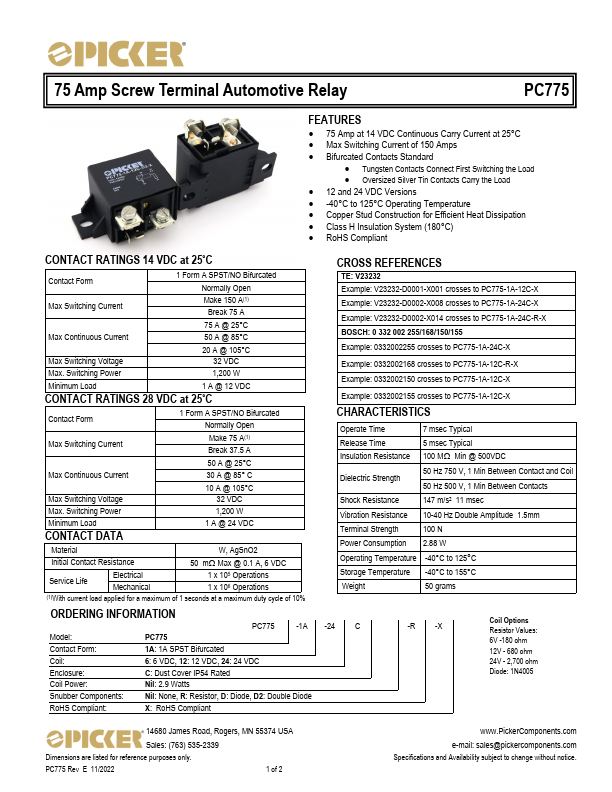

Preview of PC775 PDF

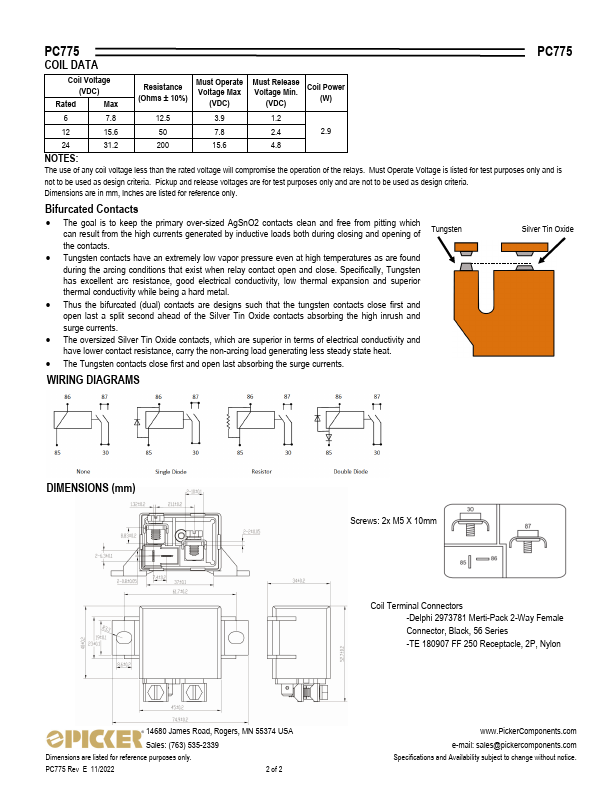

datasheet Preview Page 2

Datasheet Details

Part number
PC775
Manufacturer
Picker
File Size
614.07 KB
Datasheet
PC775-Picker.pdf
Description
75 Amp Screw Terminal Automotive Relay
